Jaipur, Rajasthan · Supplied across India
High-Quality Submersible Winding Wire, Built on 30+ Years of Trust
Reliable submersible winding wire for pump and motor applications — supplied across India from Jaipur. Sizes 0.6 mm to 2.5 mm, ready for dispatch.
- Years of Legacy
- 30+Years of Legacy
- Clients
- 1000+Clients
- Supply
- Pan-IndiaSupply
- Customer Satisfaction
- 100%Customer Satisfaction
- 0.6–2.5 mm range20 sizes across the range
- Made in JaipurRajasthan, India · Since 1995
- Pan-India dispatchSupplied to every state
- Competitive pricingDirect from the manufacturer
Our promise
Built With New Technology
The five things our customers buy us for, and the five things we hold ourselves to.
- High qualityLong life, and dependable in service
- Safe in waterBetter insulation
- Better performanceLess heat, more efficiency
- Strong and durableBuilt for heavy duty motors
- Standard qualityEvery batch to the same specification
Submersible Winding Wire
Choose Your Wire Size
Twenty sizes from 0.6 mm to 2.5 mm. Select a size to see its full specification, then send us an enquiry in one tap.
Choose a size above

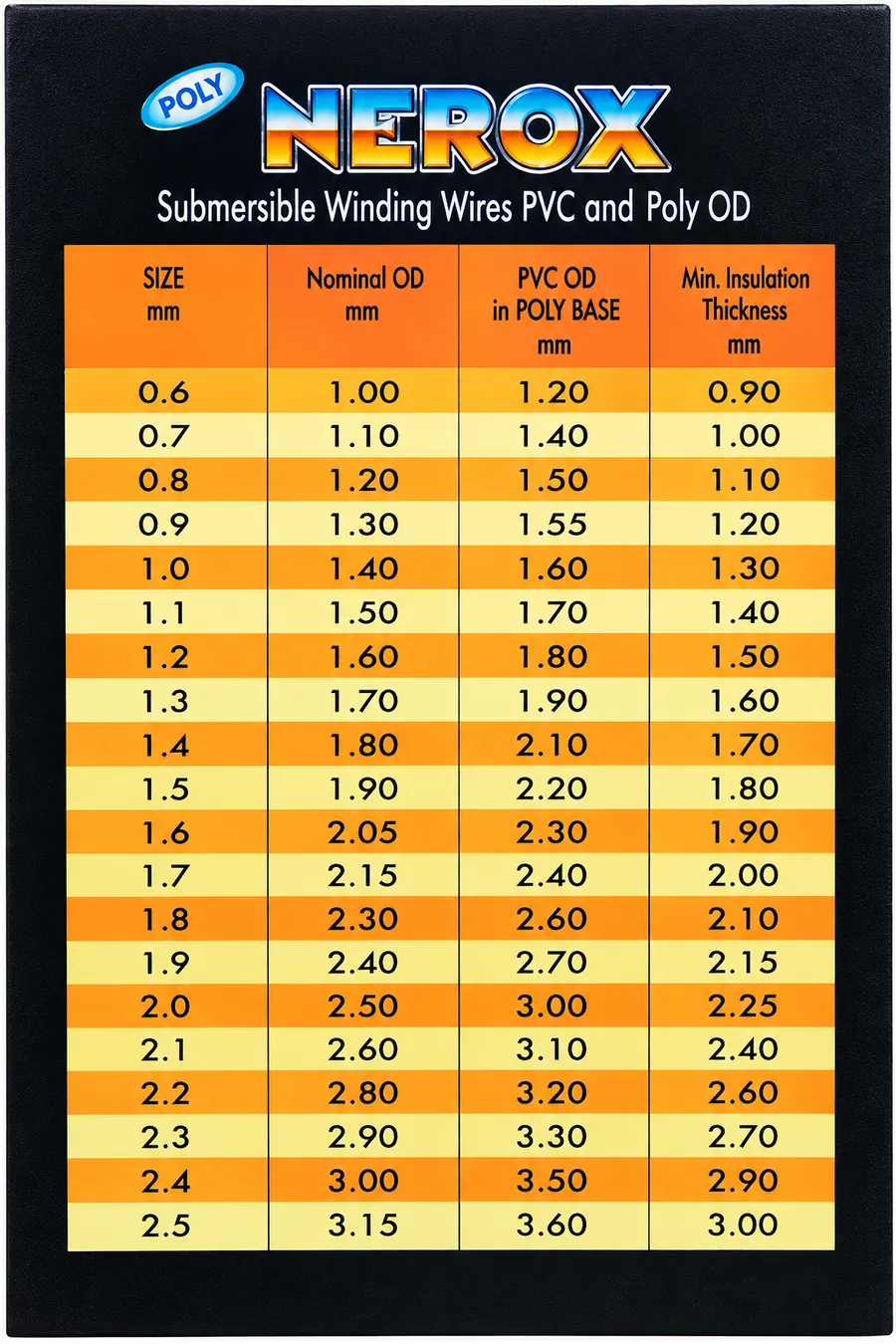

| Size(mm) | Nominal OD(mm) | PVC OD in Poly Base(mm) | Min. Insulation Thickness(mm) | Enquiry |
|---|---|---|---|---|
| 1.00 | 1.20 | 0.90 | ||
| 1.10 | 1.40 | 1.00 | ||
| 1.20 | 1.50 | 1.10 | ||
| 1.30 | 1.55 | 1.20 | ||
| 1.40 | 1.60 | 1.30 | ||
| 1.50 | 1.70 | 1.40 | ||
| 1.60 | 1.80 | 1.50 | ||
| 1.70 | 1.90 | 1.60 | ||
| 1.80 | 2.10 | 1.70 | ||
| 1.90 | 2.20 | 1.80 | ||
| 2.05 | 2.30 | 1.90 | ||
| 2.15 | 2.40 | 2.00 | ||
| 2.30 | 2.60 | 2.10 | ||
| 2.40 | 2.70 | 2.15 | ||
| 2.50 | 3.00 | 2.25 | ||
| 2.60 | 3.10 | 2.40 | ||
| 2.80 | 3.20 | 2.60 | ||
| 2.90 | 3.30 | 2.70 | ||
| 3.00 | 3.50 | 2.90 | ||
| 3.15 | 3.60 | 3.00 |
All dimensions in millimetres, as printed on our specification card. Figures are manufacturing dimensions, not tolerances.
What You Are Buying
- Made for submersible motorsWire designed for use in submersible pump and motor winding, where the winding stays in water for long periods.
- Consistent dimensionsEvery size is produced to the dimensions printed on our size card, so your winding data stays predictable batch after batch.
- Quality-focused insulationA poly base with a PVC covering, finished and checked so the insulation stays even along the length of the wire.
- A wide size rangeTwenty sizes from 0.6 mm to 2.5 mm, so you can source your full winding requirement from one supplier.
Technical dimensions in detail
The table lists four dimensions for each size: the conductor size, the nominal outside diameter, the outside diameter over the PVC layer on a poly base, and the minimum insulation thickness. All values are in millimetres and match our printed specification card.
Need a dimension, packing size or quantity that is not listed here? Send us a message and our team will confirm it directly.
Packing and dispatch
Two Grades of Submersible Winding Wire
We make our submersible winding wire in two grades — NEROX Gold, which is four coated, and NEROX, which is three coated. Both are supplied in our own printed cartons.

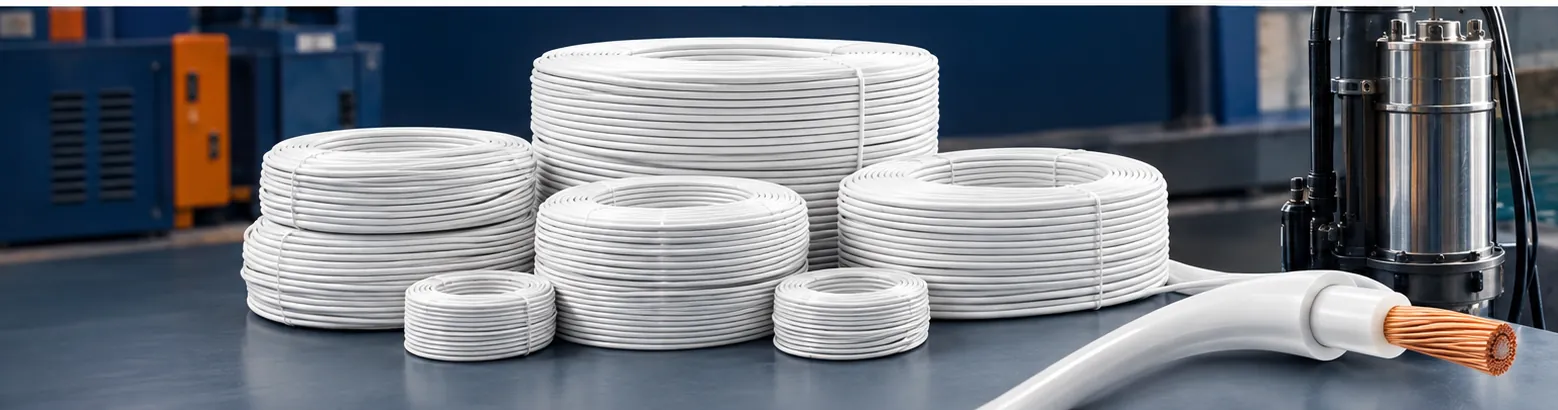

Wire is coiled and packed in our own printed cartons, ready for transport to any part of India.
Tell us which grade you need when you enquire and we will confirm sizes, availability and pricing for it.
NEROX GoldFour coated NEROXThree coated
Quality
Quality That Goes Beyond the Wire
Submersible winding runs for years underwater. Our work is to make sure the wire you receive is the same as the wire you ordered — every time.
Dimensional consistency
Sizes are held to the dimensions on our specification card so your slot fill and turns per coil stay the same.
Even insulation
Insulation thickness is kept uniform along the wire, which is what keeps a winding reliable in service.
Controlled manufacturing

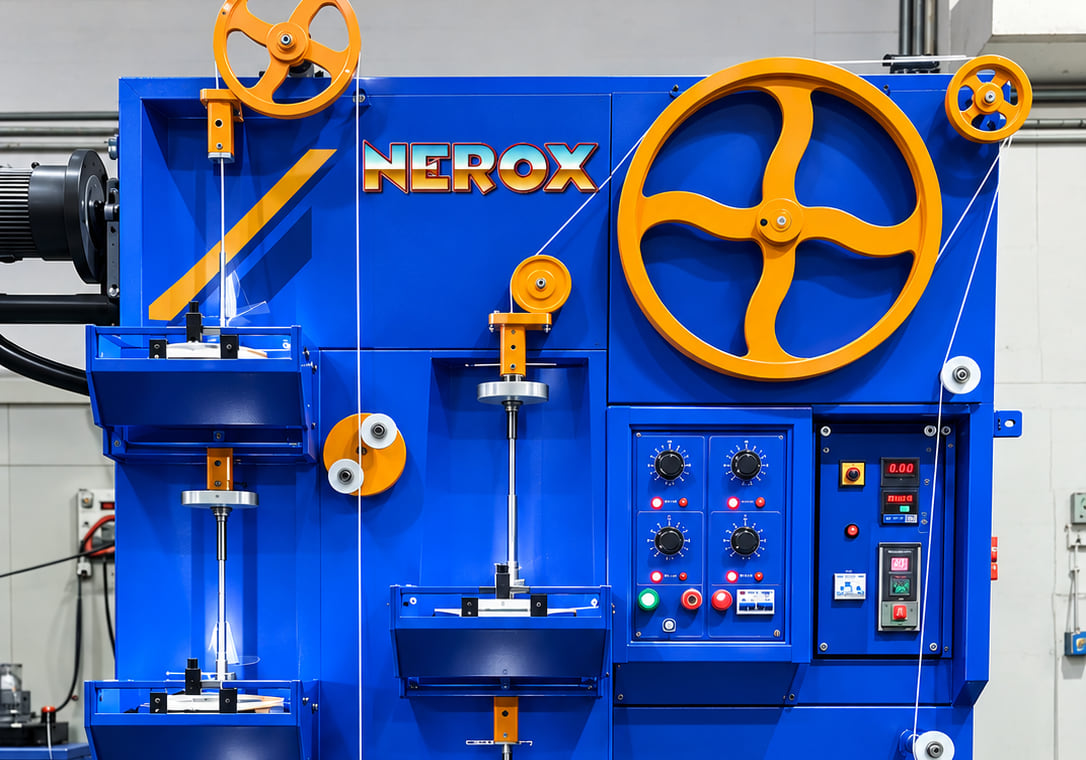

Drawing, covering and finishing are run as a controlled process rather than job to job.
Inspection before packing
Wire is gauged and visually checked before it is coiled and packed for dispatch.
Clean finishing
A smooth, even surface finish so the wire feeds properly during winding and rewinding.
Consistent supply
The same specification available across the full size range, order after order.
We publish only the dimensions we actually print on our size card. For any additional test data or documentation your purchase team needs, please ask us directly.
How it is made
From Raw Material to Dispatch
A straightforward process, run the same way every time. Each stage is checked before the wire moves to the next.
Step 1
Raw material
Incoming material is received and checked before it goes into production.
Step 2
Wire processing
The conductor is drawn down to the required size on our drawing lines.
Step 3

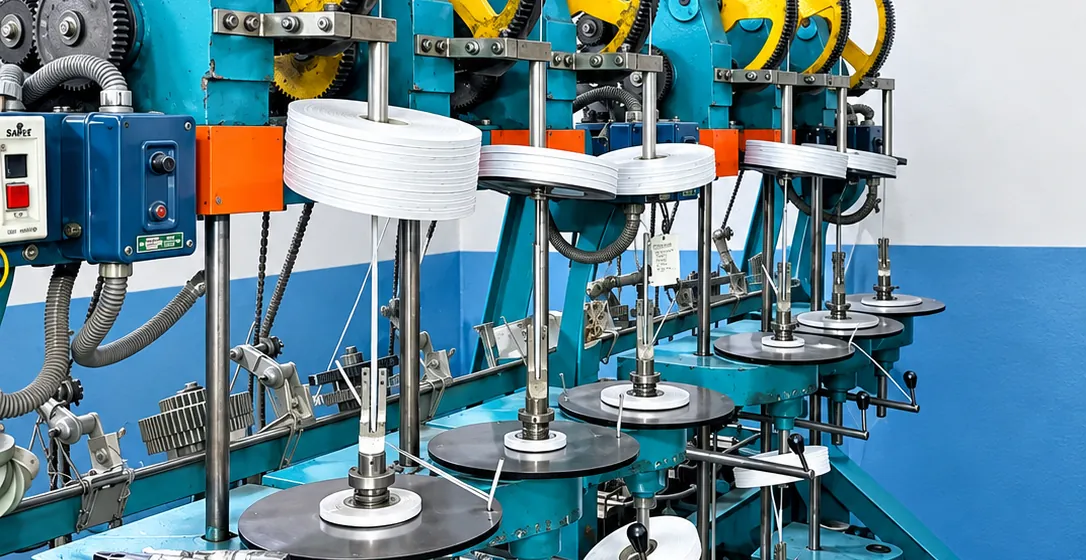

Insulation and covering
The poly base and PVC covering are applied to the specified thickness.
Step 4

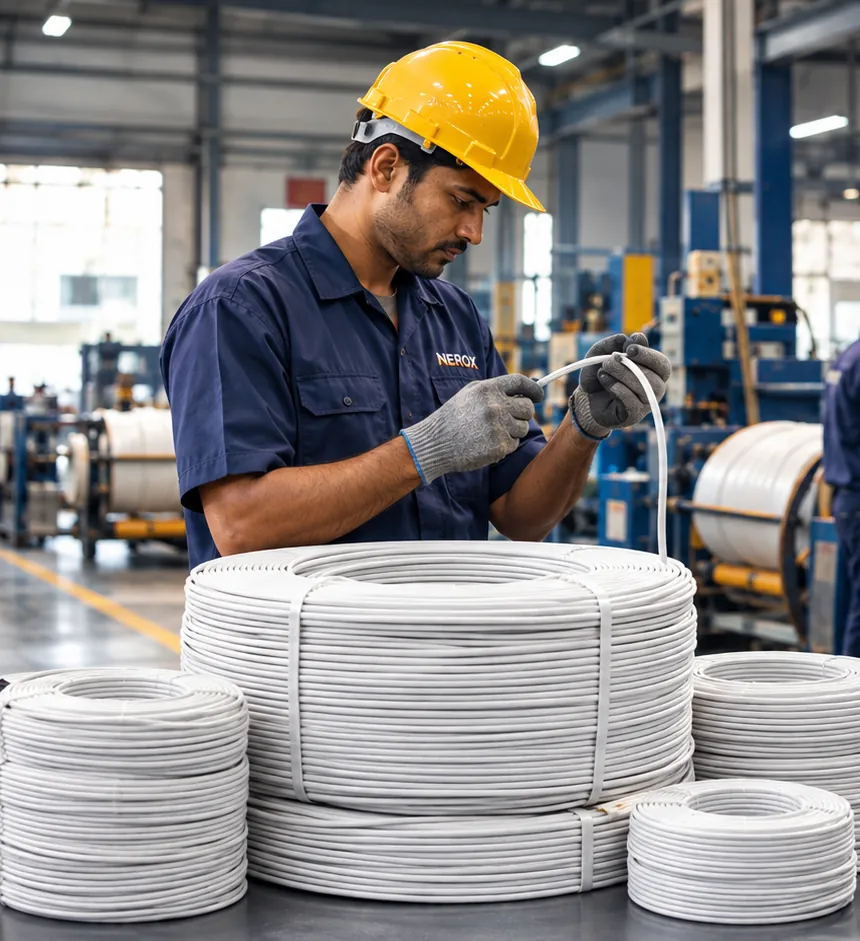

Dimensional inspection
Outside diameter and insulation thickness are gauged against the size card.
Step 5
Quality check
The wire is checked for an even surface and a consistent finish.
Step 6
Packing
Wire is coiled and packed in our printed cartons, ready for transport.
Step 7
Dispatch
Orders are dispatched from Jaipur to customers across India.
Where it is used
Typical Applications
Our wire is bought by manufacturers, rewinders and traders working on the following.
- Submersible pumps
- Submersible motors
- Agricultural pump systems
- Water pump applications
- Motor rewinding
- Pump and motor manufacturing
Listed as typical applications. For a specific motor design or duty, please confirm the requirement with our team before ordering.
Why buy from us
Why NEROX
Six straightforward reasons our customers keep coming back.
Best in Rajasthan, and supplied right across India.
30+ years of experience
Three decades in the winding wire trade, working with the same kind of customers you are.
We only do submersible wire
One product, done properly. We are not spreading our attention across a dozen categories.
Wide size range
Twenty sizes from 0.6 mm to 2.5 mm, so one order can cover your full requirement.
Quality-focused manufacturing
Controlled production and inspection before packing, because a failed winding costs you far more than the wire.
Competitive pricing
You are buying directly from the manufacturer, not through a chain of middlemen.
Pan-India supply
Dispatched from Jaipur to customers across India.
Not sure which size you need?
Tell us your motor or pump requirement and our team will help you work it out.
Our base
Made in Jaipur. Supplied Across India.
From our base in Jaipur, Rajasthan, we serve customers across India with specialised submersible winding wire.
- Manufactured in JaipurOur production and our team are both based in Jaipur, Rajasthan.
- Dispatched nationwideWe supply pump and motor businesses in every part of the country.
- Direct from the manufacturerSpeak to the people who actually make the wire, not a reseller.
About us
30+ Years of Building Trust
Nerox MS Metals has spent over three decades in one trade: submersible winding wire. We are a Jaipur-based business, and the work has always been the same — make wire to a consistent specification, price it fairly, and pick up the phone when a customer calls.
Our customers are submersible pump and motor manufacturers, rewinding workshops, dealers and electrical traders. Many of them have been buying from us for years, and that is largely because they know what they are getting. The size card has not changed to suit a cheaper batch, and it will not.
We are not the biggest wire company in India, and we do not try to be. We make one product, we make it across 20 sizes from 0.6 mm to 2.5 mm, and we supply it across the country from Jaipur. If that is what you need, we would like to quote for your requirement.
